LIFTING MAGNET
리프팅마그네트
Specification
Outline
TYPE : K-WRM130
POWER : 6.5 kW
VOLTAGE : 220VDC
WEIGHT : 2200 kg/EA
TEMPERATURE : 500 ºC
Material Handling
SPOOLER COIL
ID : 850 mm
OD : 1200 ~ 1250 mm
HEIGHT : 700 mm
WEIGHT : 3.5 Ton

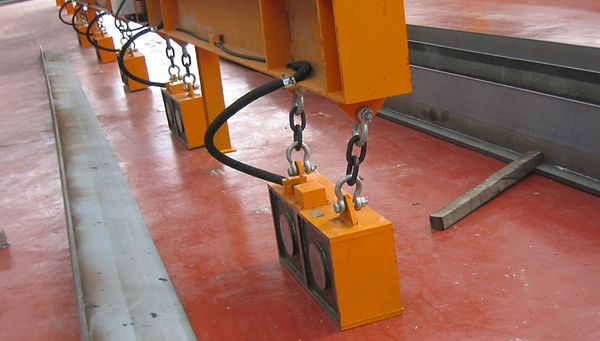

T-Bar Lifting Magnet
Specification
Outline
TYPE : K-RM3060HV
POWER : 0.52 kW
VOLTAGE : 110VDC
WEIGHT : 140 kg/EA
TEMPERATURE : COLD
Material Handling
5 MAGNETS
T-BAR HANDLING
HORIZONTAL PLATE
12 t x 300 x 20 m – 1 EA
VERTICAL PLATE
12 t x 450 x 20 m – 1 EA
MAGNET PITCH : 4 m
Lifting Beam
Outline
Specification
TYPE : K-RM30180
POWER : 1.8 kW
VOLTAGE : 220VDC
WEIGHT : 450 kg/EA
Material Handling
5 MAGNETS
15 Ton 1 Hook Double Girder
Hoist Crane
LIFTING BEAM
H – 340 x 250 x 9/14 x 11 m
STEEL PLATE
10 t x 3.8 m x 15 m
Extension Lifting Beam
Outline
Specification
TYPE : K-RM40160
POWER : 3.2 kW
VOLTAGE : 220VDC
WEIGHT : 650 kg/EA
Material Handling
6 MAGNETS
10 + 10 Ton 2 Hook Double Girder
Hoist Crane
LIFTING BEAM
2 - H600 x 200 x 11/17 x 12 m
STEEL PLATE
10 t x 4.0 m x 20 m
Slewing Lifting Beam
Outline
Specification
TYPE : K-RM35175
POWER : 1.5 kW
VOLTAGE : 220VDC
WEIGHT : 510 kg/EA
Material Handling
5 MAGNETS
7.5 + 7.5 Ton 2 Hook Double Girder
Hoist Crane
LIFTING BEAM
H390 x 300 x 10/16 x 9 m
STEEL PLATE
10 t x 4.0 m x 13 m
Battery Magnet
Outline
3TON
TYPE : K-BM3000
POWER : 0.12 kW
VOLTAGE : 24VDC
RATING : 50 %ED
WORKING HOUR : 8 hr
CAPACITY : 3 Ton Steel Block
with Battery Charger
6TON
TYPE : K-BM6000
POWER : 0.23 kW
VOLTAGE : 24VDC
RATING : 50 %ED
WORKING HOUR : 8 hr
CAPACITY : 6 Ton Steel Block
with Battery Charger
