Magnetic Coupling Reel
마그네틱 커플링 릴
-
Winding Length : 30m ~ 400m
-
Winding Speed : 20 m/min ~ 90 m/min
-
Applicable Cable : 4c x 25㎟ ~ 4c x 300㎟
대형 갠트리 크레인용 케이블릴
Cable Reel for Gantry Crane
컨테이너 야드용 케이블릴
Cable Reel for Container Crane
후릭션 케이블릴
Friction Cable Reel
스프링릴
Spring Reel
토오크 모터릴
Torque Motor Reel

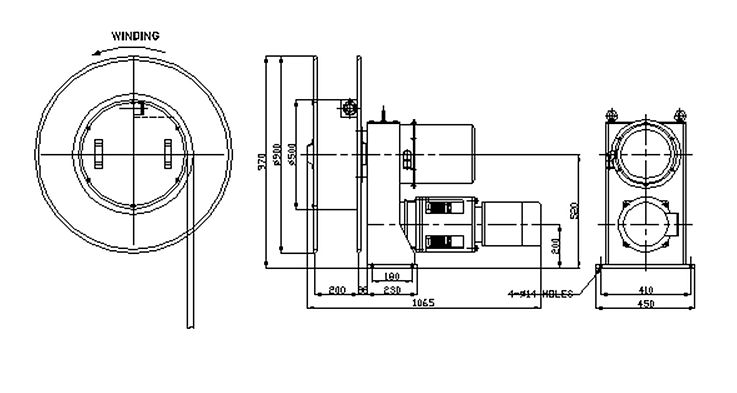

Outline
Outline
Specification
1. Type: K-MCR10
2. Cable: 0.6/1kV PNCT 6SQx8C
3. Winding Length: 34 m
4. Winding Speed: 60 m/min
5. Application: REFUSE CRANE Vertical Lift
Outline
Specification
1. Type: K-MCR30M1
2. Cable: 0.6/1kV PNCT-F 70SQx4C
3. Winding Length: 80 m
4. Winding Speed: 30 m/min
5. Application: Gantry Crane
Outline
Specification
1. Type: K-MCR40M1
2. Cable: 6.6kV HC-3RP 35SQx4C
3. Winding Length: 200 m
4. Winding Speed: 30 m/min
5. Application: Harbor Crane MOKPO NEW PORT
Outline
Specification
1. Type: K-MCR40M1
2. Cable: 6.6kV HC-3RP 35SQx4C
3. Winding Length: 200 m
4. Winding Speed: 30 m/min
5. Application: Harbor Crane MOKPO NEW PORT

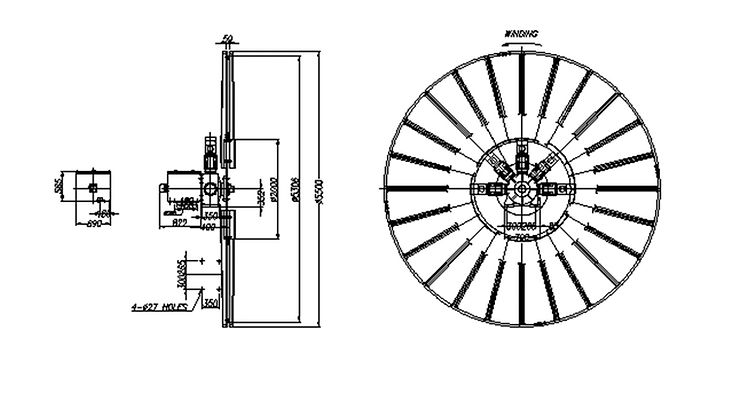

Outline
Specification
1. Type: K-MCR50M5
2. Cable: 6.6kV HC-2RP 120SQx3C+7-SQx1C
3. Winding Length: 330 m
4. Winding Speed: 90 m/min
5. Application: RTGC PSA INCHEON CON’ YARD

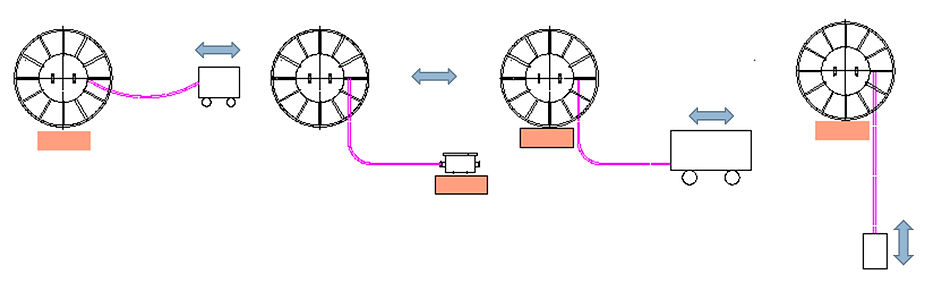

Application
Common Application
VERTICAL LIFT
HORIZINTAL STEWRCH
HORIZONTAL RETRIEVE
DRAG

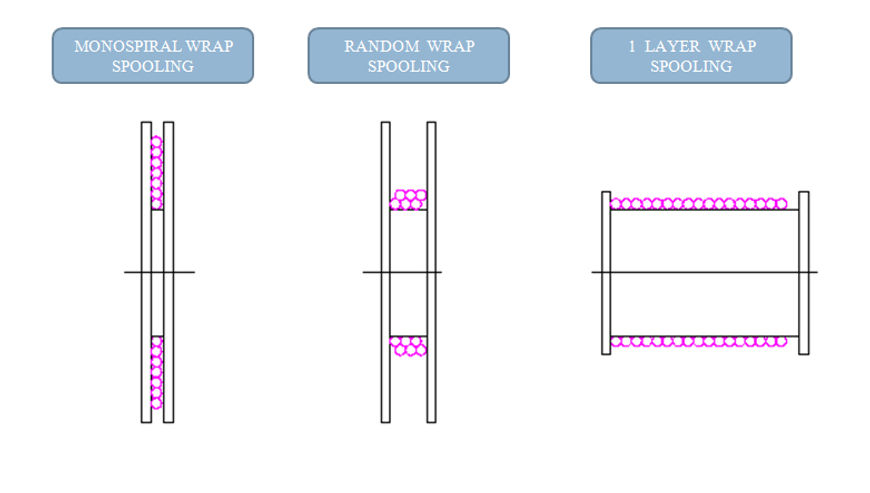

Spooling
Spooling
